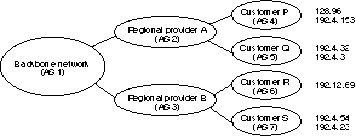

| BGP Example |
|
|
|
|
|
|
|
|
|
|
| n | Speaker
for AS 2 advertises reachability to P and Q |
||||||||
| Network
128.96, 192.4.153, 192.4.32, and 192.4.3, can be |
|||||||||
| reached
directly from AS 2. |
|||||||||
| n | Speaker
for backbone network then advertises |
||||||||
| Networks
128.96, 192.4.153, 192.4.32, and 192.4.3 can be |
|||||||||
| reached
along the path <AS 1, AS 2>. |
|||||||||
| n | Speaker
can also cancel previously advertised paths |
||||||||
